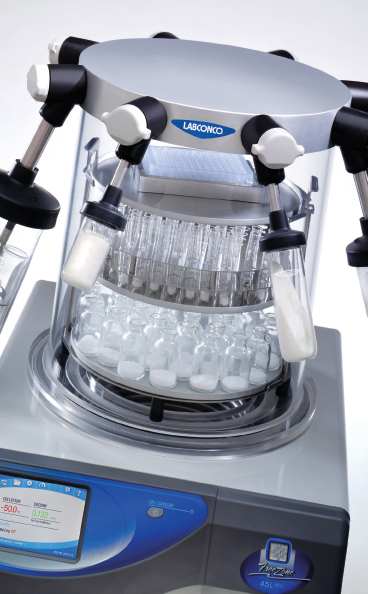

Lab Freeze Dryers

The use of freeze dryers / lyophilizers in research labs is broad. There are almost an unlimited number of different materials used in different type of containers such as trays, tubes, ampoules, vials etc.

Hierfür bieten wir:

-Powerful, flexible and reliable solutions

-For aggressive materials also models with coated condenser

-Differenet condenser temperatures such as up to -50°C / -85°C /-100°C

-Ice capacities from 2 to 18 liters. Optional up to 40 liters

-Solutions for simple applications such drying at rubber valves or in acrylic chambers

-Solutions for more sensitive freeze drying on tmperature controlled with full reproducible results

-Easy maintain

-Custom-made solutions available
-Zahlreiche Konfigurationsmöglichkeiten und eine große Auswahl an Zubehör für die Trocknung in unterschiedlichsten Gefäßen wie Rundkolben, Schalen, Vials, Ampullen, Weithalsflaschen usw.

Pilotscale Freeze Dryers

The application at research and development centers are for example product and process development, plus optimization of the process for product quality and homogenity. Additionally the possibility for using the results to upscale the process on larger production is interesting. Especially for this purpose the pilot scale freeze dryers are constructed.

-Fully reproducible results
-Systems from 0.2 to 2.8sqm shelf area
-Ice condenser capacity of 4 to 50 kg
-Different cooling systems with temperatures of -55°C on the shelf and <-80°C on the condenser

Large number of possible configurations and options

-Capacitance/Pirani trigger

- Isolation valve between condenser and ice condenser

-Determination of eutectic point

-Sample extraction tool for extracting vials during the drying process

- CIP Cleaning-In-Place

-Sterilisation option

-Free standing mobile design or constructed for wall installation

-Dry pumps

-and much more

Productionscale Freeze Dryer

solutions for companies of different fields such as pharma, biotech, biochemistry, diagnostics food and much more.

We offer:

- Systems with internal and external condenser
- Solutions up to 50 sqm shelf area and 1000kg ice capacity. For more simple products such as food products also larger.
- Low-budget solutions for more simple applications.

An almost unlimited choice of available options :and configurations

such as for example

- Automatuc doorlocks

- Hydraulic stoppering

- Iso valve between product chamber an ice condenser. (Butterfly valve or optional mushroom valve)

- Vacuum control by proportional valve

- Capacitance vacuum sensor with ossibility for determination ofthe end of primary drying by capacitance / Pirani sensor

- Dry pumps

- Environmental friendly cooling systems

- Pizzadoor .

- SIP - Steam-In-Place

- CIP - Cleaning-In-Place

- IQ / OQ / FAT / SAT

- Enduser training

- Maintenance training

Food Freeze Dryers

together withour partner company Leosmak we are offering simple, but powerful and reliable solutions for freeze drying food products and other simple bulk products

- Systems with internal condenser from small house/lab scale up to industrial applcations of 600 kg per batch.Larger solutions on request

- Because of active coolable shelves, the lyophilizers offer possibility to run complete processs such as freezing, primary and secondary drying inside of the equipment.

- Energy saving construction

- Large drying surface for thin layers and therefor reduced dryiing tiimes
